Sheet piles are sections of sheet materials with interlocking edges that are driven into the ground to provide earth retention and excavation support. Sheet piles are most commonly made of steel, but can also be formed of timber or reinforced concrete.
Sheet piles are commonly used for retaining walls, land reclamation, underground structures such as car parks and basements, in marine locations for riverbank protection, seawalls, cofferdams, and so on.
Minimum Order Quantity | 10 Ton |
---|---|
Surface Treatment | Cold Rolled |
Thickness | Upto 10 mm |
Size/Dimension | 400x185mm |
Type | Z Type |
Shape | Z |
Material | Mild Steel |
Material Grade | IS 2062 |
Length Meters | Customized |
Pattern | Z Type |
Technique | Cold Rolling |
Color | Black Finish |
Usage/Application | Construction |
Country of Origin | Made in India |

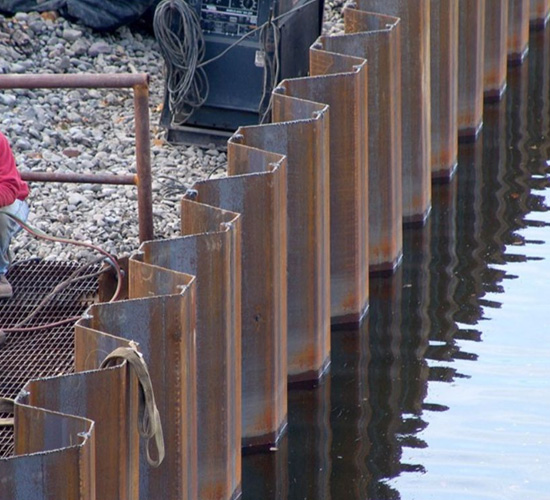

Sheet piles are installed in sequence to design depth along the planned excavation perimeter or seawall alignment. The interlocked sheet piles form a wall for permanent or temporary lateral earth support with reduced groundwater inflow. Anchors can be included to provide additional lateral support, if required.
Sheet pile walls have been used to support excavations for below-grade parking structures, basements, pump houses, and foundations, to construct cofferdams, and to construct seawalls and bulkheads. Permanent steel sheet piles are designed to provide a long service life. Vibratory hammers are typically used to install sheet piles. If soils are too hard or dense, an impact hammer can be used to complete the installation. At certain sites where vibrations are a concern, the sheets can be hydraulically pushed into the ground.
Use the contact us section and get in touch with us via any provided mode. We assure to provide a superior product at sheet piling dealers in Haryana, Faridabad the cheapest prices.
